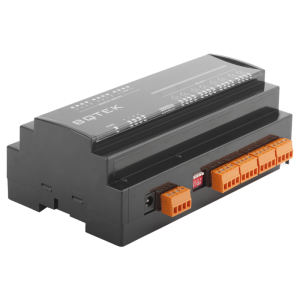

Modbus IO Device with 8 Relay Output and 8 Digital input. You can control relay with Modbus RTU commands also you can read all states from Modbus. Device supports Modbus RTU commands. Also you can read status of Digital inputs. Digital inputs of device are dry contact.
Device works with 24V DC. Relay outputs have 5A capacity. Panasonic relays are used (Relay maximum capacity 5A 277V AC / 3A 30V DC) Relays has “Normaly Open” Contacts.
Device supports Modbus RTU protocol over RS485. Factory default communication speed is 9600 baud; but you can change this baudrade. Device modbus address can adjustable. If you will use between 1-15 adsress; you can change from switchs on device. Also you can adjust between 1 and 255 with device settings software or from modbus.
