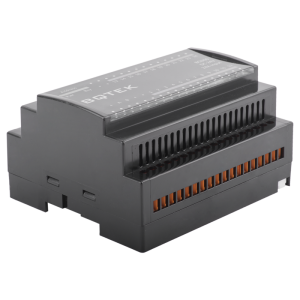

BQ360 Modbus Digital Input Device with 24 Relay Input
Modbus Input Device

The BQ360 is a Modbus Slave dry contact optical isolated modbus digital input device for interfacing to any PLC or PC usingthe Modbus RTU protocol. It behaves as a Modbus Slave Inputs. Inputs can be get by reading from the Coils and Holding Registers.

It can be used for many applications such reading sensors contacts, output states and monitoring switches and other digital signals, or industrial control.The module can connect to a standard RS485 2-wire half duplex network.

The address settings can be done withdip switches on the module. Baud rate or module address greater than 14 can be set with Modbus RTU protocol bysetting the address to zero.

Device supports Modbus RTU protocol over RS485. Factory default communication speed is 9600 baud; but you can change this baudrade. Device modbus address can adjustable. If you will use between 1-15 adsress; you can change from switchs on device. Also you can adjust between 1 and 255 with device settings software or from modbus.

Device Properties
  • Product Code: BQ360
  • Product: Modbus Digital Input Device with 24 Input
  • Power: 24V DC 1.5A
  • Input: 24 Digital Output (DC 24V)
  • Protocol: RS485 Modbus RTU
  • Enclosure: Plastic Rail Type Enclosure (Also suitable for wall mounth)
  • Terminal: Screw type Terminal (5.08mm)
  • Dimensions: 110mm x 90mm x 60mm
Documents and Softwares

Product Catalog

This document help you for fast start.

Modbus Device Manager

Software for making settings of modbus IO devices
Other Pictures of Device
Blog Posts About Product and Product Family
Modbus Device Manager

Modbus Device Manager Application

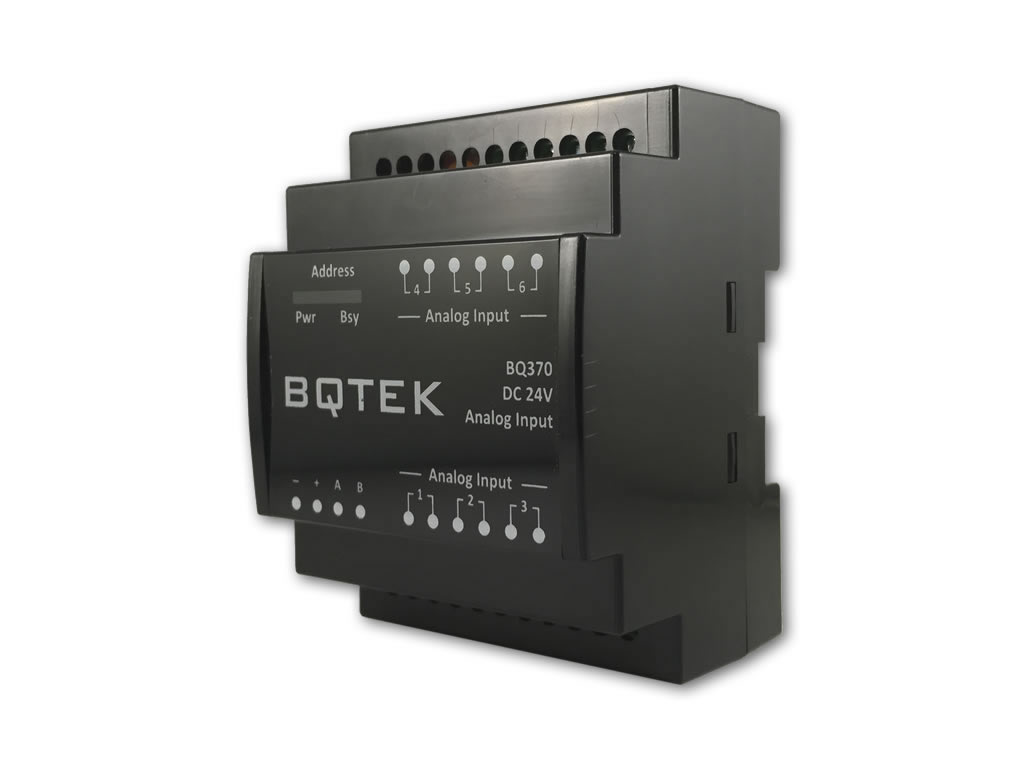

BQTEK Modbus Device Manager Software BQTEK Modbus Device Manager Software helps you for making settings of Modbus IO Devices. It can be used for this devices: BQ360 BQ352 BQ351 All BQ370 and BQ370N devices You change modbus address and some sensor details with this application Modbus Device Manager Software for making settings of modbus IO…
